FEATURES
Characteristics

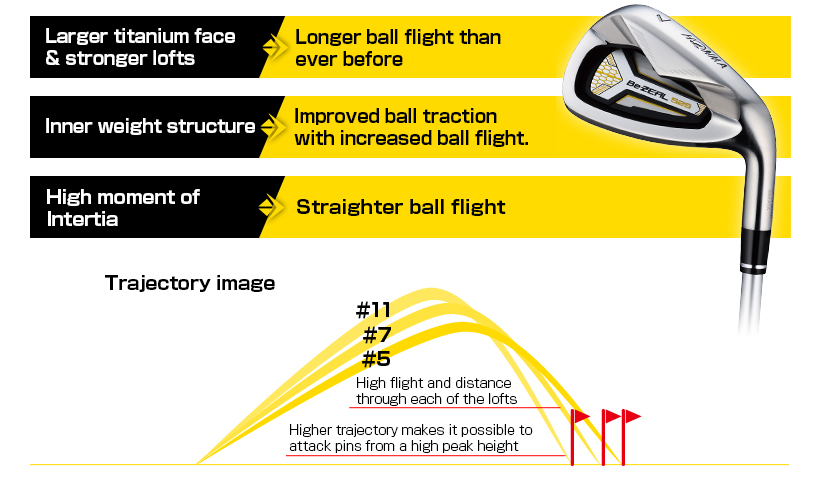

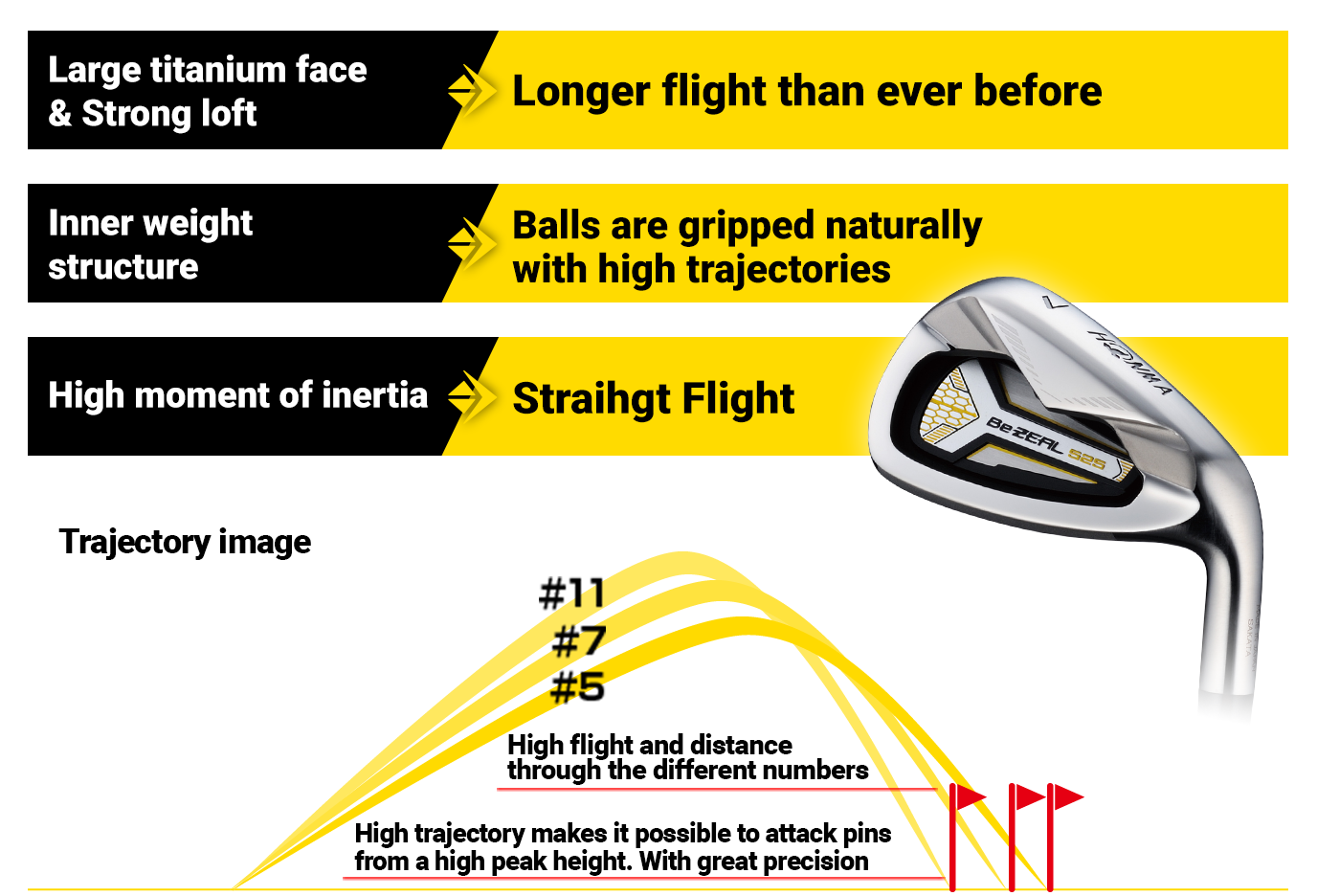

Longer flight than ever.

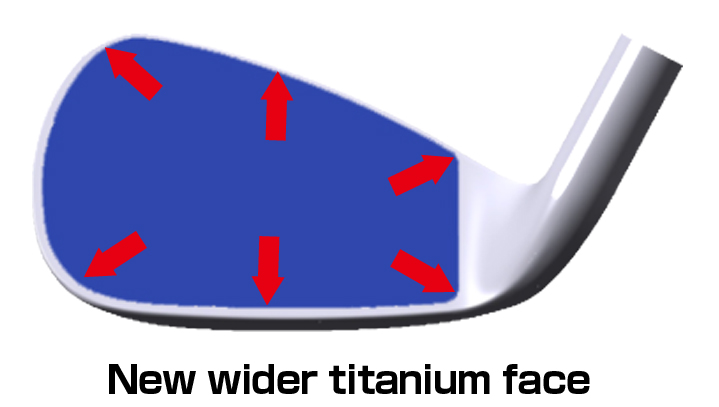

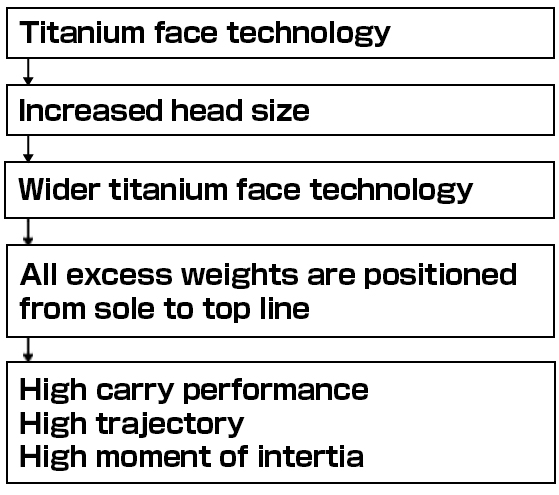

Large titanium face insert
Larger titanium face and an expanded repulsion area improves carry performance.
Strong loft flight design
HONMA Golf’s long-time development of stronger lofts has led to this latest high precision iron design.
| #4 | #5 | #6 | #7 | #8 | #9 | #10 | #11 | AW | SW |
|---|---|---|---|---|---|---|---|---|---|
| 19.5° | 22/5° | 25.5° | 28.5° | 32.5° | 36.5° | 41.5° | 46.5° | 51.5° | 56.0° |
| #4 | #5 | #6 | #7 | #8 |
|---|---|---|---|---|
| 19.5° | 22/5° | 25.5° | 28.5° | 32.5° |
| #9 | #10 | #11 | AW | SW |
| 36.5° | 41.5° | 46.5° | 51.5° | 56.0° |
Improved ball traction with increased ball flight.
Inner weight structure
A tungsten weight positioned low and deep inside the cavity increases the ability to hit the ball in the air, even on mis-hits.
Moderate face・progression
The deep CG with inner weight positioning reduces face progression to help golfers make better contact with the ball
Straight Flight
High moment of inertia
Weight embedded on toe and heel, as well as inner weight arranged for high MOI, helps reduce head wobble at impact

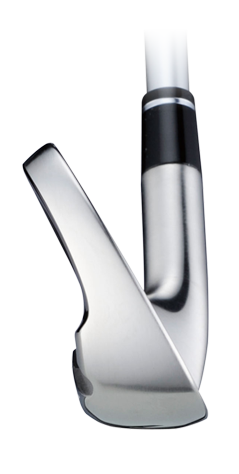

Triple grind sole
Triple grind sole is adopted on all lofts, for smooth turf interaction through any condition
Pleasant feel / sound at impact.
The thickness on the back of the hitting area provides a pleasant feel and impact sound.
A new VIZARD shaft was developed for Be ZEAL.
Our powerful technological development capabilities, which satisfies the needs of professional golfers, has been utilized to help amateur golfers achieve their full potential.
| EPT-tech Efficient Power Transmission Technology |
| Increased acceleration provided by "low kick point design" |
| Higher launch angle and optimized spin provided by our "total stiffness design" |
| Reduction in power loss on impact with Zxion®, a vibration damping material |
Single-piece design of head + shaft
| Wood : | Grip‐oriented design for longer carry distance, which is easily achieved through a higher trajectory and reduced spin rate. |
| Iron : | Reduction in loss of momentum during follow-through coupled with a special design to create shots with higher trajectories and increased spin rates, which lead to increased backspin. |
ZXION®, a vibration damping material, is used in the tip.
The reduced shock on impact diminishes loss of power on contact.
The reduced head shake helps achieve increased directional stability.
*ZXION® is the registered trademark of KB Seiren, Ltd.
This material is widely used in the sports fields, including catgut for tennis rackets, aircraft, belt reinforcing materials, speaker cones, etc.
SPEC Be ZEAL 525
| Head material / Manufacturing process | Body : SUS630 / Casting Face : 6-4 Titanium |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Head plating | Satin finish + Polished + Painted finish | |||||||||||
| # (No.) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | AW | SW | ||
| Loft (deg.) | 19.5 | 22.5 | 25.5 | 28.5 | 32.5 | 36.5 | 41.5 | 46.5 | 51.5 | 56.0 | ||
| Lie angle (deg.) | 60.5 | 61.0 | 61.5 | 62.0 | 62.5 | 63.0 | 63.0 | 63.0 | 63.0 | 63.5 | ||
| VIZARD for Be ZEAL | Length (inches) | 38.5 | 38.0 | 37.5 | 37.0 | 36.5 | 36.0 | 35.5 | 35.0 | 35.0 | 35.0 | |
| Swing weight・ Gross weight (g) |
R | C9・352 | C9・358 | C9・364 | C9・370 | C9・377 | C9・384 | C9・390 | C9・396 | C9・396 | D0・398 | |
| SR | D0・356 | D0・362 | D0・368 | D0・374 | D0・381 | D0・388 | D0・394 | D0・400 | D0・400 | D1・402 | ||
| S | D0・357 | D0・363 | D0・369 | D0・375 | D0・382 | D0・389 | D0・395 | D0・401 | D0・401 | D1・403 | ||
| NS PRO950GH | Length (inches) | 38.25 | 37.75 | 37.25 | 36.75 | 36.25 | 35.75 | 35.25 | 35.0 | 35.0 | 35.0 | |
| Swing weight・ Gross weight (g) |
R | D1・390 | D1・396 | D1・402 | D1・409 | D1・416 | D1・423 | D1・431 | D1・434 | D1・434 | D2・436 | |
| S | D2・395 | D2・401 | D2・407 | D2・414 | D2・421 | D2・428 | D2・436 | D2・439 | D2・439 | D3・441 | ||
Made in Japan
SHAFT VIZARD for Be ZEAL
| Material | Carbon+ZXION® | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Kick-point | Mid | ||||||||||
| Flex | R,SR,S | ||||||||||
| # (No.) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | AW | SW | |
| Gross weight (g) | R | 52.0 | 52.5 | 52.0 | 52.5 | 52.0 | 52.5 | 52.0 | 51.5 | ||
| SR | 53.5 | 54.0 | 53.5 | 54.0 | 53.5 | 54.0 | 53.5 | 53.0 | |||
| S | 55.0 | 55.5 | 55.0 | 55.5 | 55.0 | 55.5 | 55.0 | 54.5 | |||
| Torque (deg.) | R | 3.97 | 3.90 | 3.83 | 3.76 | 3.69 | 3.62 | 3.55 | 3.48 | ||
| SR | 3.92 | 3.85 | 3.78 | 3.71 | 3.64 | 3.57 | 3.50 | 3.43 | |||
| S | 3.87 | 3.80 | 3.73 | 3.66 | 3.59 | 3.52 | 3.45 | 3.38 | |||
| Frequency (cpm) | R | 252 | 260 | 268 | 276 | 284 | 292 | 300 | 308 | ||
| SR | 260 | 268 | 276 | 284 | 292 | 300 | 308 | 316 | |||
| S | 268 | 276 | 284 | 292 | 300 | 308 | 316 | 324 | |||
| Material | Steel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kick-point | Mid | |||||||||||
| Butt diameter (mm) | 15.5 | |||||||||||
| Tip diameter (mm) | 9.02 | |||||||||||
| Flex | R,S | |||||||||||
| # (No.) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | AW | SW | |
| Gross weight (g) | R | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 |
| S | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 | |
| Torque (deg.) | R | 2.1 | 2.1 | 2.0 | 2.0 | 1.9 | 1.9 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| S | 2.0 | 2.0 | 1.9 | 1.9 | 1.8 | 1.7 | 1.7 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Frequency (cpm) | R | - | - | - | 315 | - | - | - | - | - | - | - |
| S | - | - | - | 328 | - | - | - | - | - | - | - | |
Data is a maker official announcement value
